About Us
Wuxi Yado Electromechanical Co., Ltd. was established in 2022. It is registered and located in Jiangyin City, Wuxi, which enjoys the reputation of "Pearl of Taihu Lake". Situated in the core industrial belt of the Yangtze River Delta, it has convenient water and land transportation networks and a favorable business environment. With precise market positioning and profound industry accumulation, it has grown into a new force in the export field of magnetic materials and transformers. As a specialized enterprise focusing on the export of transformer cores, Yado Electromechanical has accumulated rich technical and market experience in the magnetic materials industry and constructed a diversified product matrix. Its core products include various high-quality magnetic materials such as C-shaped cores, ring-shaped cores, and cutting cores, as well as stable control transformers. To meet the personalized needs of global customers, the company has formed a professional R&D team and continuously invests in the development of new products and new technologies, constantly expanding product boundaries and application scenarios. Yado Electromechanical is equipped with professional testing equipment such as core magnetic testing instruments and transformer capacity and loss testing instruments, and has established a full-process quality control system. Each process undergoes strict testing to ensure that the product performance meets international standards. With high-quality products, competitive prices and considerate services, it has established a good reputation among domestic and foreign customers. In the future, Yado Electromechanical will continue to focus on the export field of magnetic materials and transformers, and welcomes new and old customers at home and abroad to cooperate and jointly create new value and commercial success in the industry.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- YadooTEK
- Established
- 2022
- Ownership
- Private
- Production Model
- OEM/ODM
- Annual Output
- 250000units
- R&D Team
- 25 engineers
- Website
- www.yadootek.com
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|
| NCW100 NCW150 NCW200 NCW300 NCW350 NCW500 NCW750 NCW1000 NCW1500 NCW2000 NCW2500 | Toroidal Wound Core for Transformer/No-Cut Silicon Steel Core | silicon steel | power supply | ||||||
|
Images
Type Toroidal Wound Core for Transformer/No-Cut Silicon Steel Core Applicable Industry power supply Params core material: CRGO silicon steel
core diameter range: 50–200 mm
rated power: 100–5000 VA
core loss: ≤1.0 W/kg at 1.5T, 50Hz
operating temperature: -40°C to 120°C Scope |
|||||||||

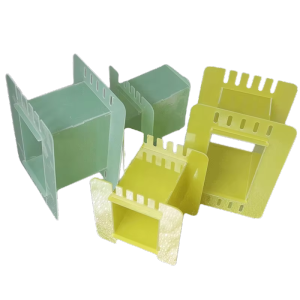

| BOBBIN | Transformer Bobbin, Inductor Bobbin, High Voltage Bobbin, SMD Bobbin, Through-Hole Bobbin, PA66 Bobbin | PA66 NYLON ABS | electronics electrical devices | ||||||
|
Images
Type Transformer Bobbin, Inductor Bobbin, High Voltage Bobbin, SMD Bobbin, Through-Hole Bobbin, PA66 Bobbin Applicable Industry electronics
electrical devices Params Material: PA66, Nylon, PBT, Phenolic Resin
Flammability Rating: UL94 V-0
Temperature Rating: 130°C (Class B), 155°C (Class F), 180°C (Class H)
Insulation Voltage: ≥2.5kV
Working Temperature: -40°C ~ +125°C
Pin Count: 2-24 pins
Mounting Type: SMD, Through-Hole Scope |
|||||||||
| Core | Custom Toroidal Wound Core/Non-Standard Transformer Core | silicon steel | Power Transformer, Current/Voltage Transformer, Inductor/Choke, Power Electronics, Renewable Energy (Solar/Wind), EV Charging, Industrial Control | ||||||
|
Images
Type Custom Toroidal Wound Core/Non-Standard Transformer Core Applicable Industry Power Transformer, Current/Voltage Transformer, Inductor/Choke, Power Electronics, Renewable Energy (Solar/Wind), EV Charging, Industrial Control Params Core material: CRGO silicon steel
Customizable size range: OD 30–300 mm, ID 15–200 mm, H 10–150 mm
Rated power range: 50 VA–10 kVA
Core loss: ≤1.2 W/kg at 1.5T, 50Hz
Operating temperature: -40°C to 130°C Scope |
|||||||||
| Permalloy core | Toroidal Permalloy Core, Precision Current Transformer Core, High Permeability Sensor Core, Ni-Fe Alloy Lamination Core, Custom Permalloy Core | Ni-Fe Permalloy Alloy (80Ni-4Mo-Fe), High Permeability Magnetic Alloy, Precision Magnetic Material | energy management energy monitoring electricity medical X-ray speical power supply | ||||||
|
Images
Type Toroidal Permalloy Core, Precision Current Transformer Core, High Permeability Sensor Core, Ni-Fe Alloy Lamination Core, Custom Permalloy Core Applicable Industry energy management
energy monitoring
electricity
medical X-ray
speical power supply Params 1J85
1J79
1J50 Scope |
|||||||||
| dry transformer oil transformer | CRGO Silicon Steel Lamination Core, Amorphous Core, Dry Type Transformer Core, Oil Immersed Transformer Core, Distribution Transformer Lamination | CRGO | electricity | ||||||
|
Images
Type CRGO Silicon Steel Lamination Core, Amorphous Core, Dry Type Transformer Core, Oil Immersed Transformer Core, Distribution Transformer Lamination Applicable Industry electricity Params 0.2
0.23
0.27
0.3 Scope |
|||||||||
| Block Core、Pulse Transformer Core、Toroid Core | Amorphous Thin Strip Core, Nanocrystalline Thin Strip Core, Silicon Steel Thin Strip Lamination, Toroidal High Efficiency Core, Low Loss Transformer Core | silicon steel permalloy | energy management energy monitoring electricity medical X-ray speical power supply | ||||||
|
Images
Type Amorphous Thin Strip Core, Nanocrystalline Thin Strip Core, Silicon Steel Thin Strip Lamination, Toroidal High Efficiency Core, Low Loss Transformer Core Applicable Industry energy management
energy monitoring
electricity
medical X-ray
speical power supply Params 0.05
0.08
0.1
0.15
MU
GT050
GT080
GT100 Scope |
|||||||||
| Low Current Transformer & Low Current Sensor Cores | Nanocrystalline Core、Toroidal Core 、Gap Core、CD Core | silicon steel nanocrystalline | energy management energy monitoring electricity EV Charging industrial control | ||||||
|
Images
Type Nanocrystalline Core、Toroidal Core 、Gap Core、CD Core Applicable Industry energy management
energy monitoring
electricity
EV Charging
industrial control Params 0.66KV
0.72KV
0.2
0.5
1
0.5S
0.2S Scope |
|||||||||
| EMI, ACF, DCF, PLC, APF | EMI/RFI Filter, Active Power Filter (APF), Harmonic Filter, AC Line Filter, DC Choke Filter, Surge Suppressor | Cold-Rolled Silicon Steel, Copper Winding, Ferrite Core, Epoxy Resin, Aluminum Alloy Housing, ABS Plastic | Industrial Automation, Power Electronics, Renewable Energy (Solar/Wind), EV Charging, Medical Equipment, Telecommunications, Smart Grid | ||||||
|
Images
Type EMI/RFI Filter, Active Power Filter (APF), Harmonic Filter, AC Line Filter, DC Choke Filter, Surge Suppressor Applicable Industry Industrial Automation, Power Electronics, Renewable Energy (Solar/Wind), EV Charging, Medical Equipment, Telecommunications, Smart Grid Params Rated Current: 1A - 1000A
Rated Voltage: 110V/220V, 380V/400V, 690V
Attenuation: 40dB-120dB (at 1MHz)
Frequency Range: 50Hz/60Hz
Insulation Resistance: ≥100MΩ
Dielectric Strength: ≥1.5kV
Protection Class: IP20, IP54 Scope |
|||||||||
| CKSG, DCL, ACL, EMC | Power Filter Choke, EMI/EMC Choke, DC Choke | Ferrite Core, Cold-Rolled Silicon Steel, Copper Winding, Aluminum Winding, Epoxy Resin, Plastic Housing | Power Electronics, Power Grid, Industrial Automation, Renewable Energy (Solar/Wind), EV Charging, Medical Equipment, Telecommunications | ||||||
|
Images
Type Power Filter Choke, EMI/EMC Choke, DC Choke Applicable Industry Power Electronics, Power Grid, Industrial Automation, Renewable Energy (Solar/Wind), EV Charging, Medical Equipment, Telecommunications Params Inductance Range: 1μH - 100mH
Rated Current: 1A - 1000A
Rated Voltage: 0.4kV, 6kV, 10kV
Frequency: 50Hz/60Hz
Insulation Class: B, F, H
Cooling Method: Natural Air Cooling
Protection Class: IP00, IP20 Scope |
|||||||||
| CKSG, CKDG, BKSC, XKSG | Dry-Type Series Reactor, Current Limiting Reactor, Filter Reactor | Silicon Steel | electricity industrial control | ||||||
|
Images
Type Dry-Type Series Reactor, Current Limiting Reactor, Filter Reactor Applicable Industry electricity
industrial control Params Inductance Range: 0.1mH - 1000mH
Rated Voltage: 0.4kV, 6kV, 10kV, 35kV
Rated Current: 50A - 5000A
Frequency: 50Hz/60Hz
Insulation Class: F, H
Cooling Method: AN (Air Natural), AF (Air Forced)
Protection Class: IP00, IP20, IP54 Scope |
|||||||||
| LZZBJ9-10, JDZ-10 | Indoor Cast Resin Transformer, High Voltage Instrument Transformer | Silicon Steel Sheet, Epoxy Resin, Copper Winding, Aluminum Alloy | Power Grid, Substation, Industrial Equipment, Smart Energy | ||||||
|
Images
Type Indoor Cast Resin Transformer, High Voltage Instrument Transformer Applicable Industry Power Grid, Substation, Industrial Equipment, Smart Energy Params Rated Current: 5A-3000A, Rated Voltage: 10kV/35kV, Accuracy Class: 0.2, Insulation Level: 42kV, Frequency: 50Hz Scope |
|||||||||
| JDZJ-10, JDZ-10, JDZ9-10 | Indoor Cast Resin Voltage Transformer, Single-Phase VT | Cold-Rolled Silicon Steel Sheet, Epoxy Resin, Copper Winding, Aluminum Alloy Housing, Insulating Paper | Power Grid, Power Substation, Power Distribution, Renewable Energy (Solar/Wind), Industrial Power System, Railway Electrification, Smart Grid | ||||||
|
Images
Type Indoor Cast Resin Voltage Transformer, Single-Phase VT Applicable Industry Power Grid, Power Substation, Power Distribution, Renewable Energy (Solar/Wind), Industrial Power System, Railway Electrification, Smart Grid Params Rated Primary Voltage: 10kV, 35kV, 110kV
Rated Secondary Voltage: 100V, 100/√3V
Accuracy Class: 0.2, 0.5, 1, 3
Rated Capacity: 10VA, 15VA, 30VA, 50VA, 100VA
Insulation Level: 12/42/75kV
Frequency: 50Hz/60Hz
Installation Type: Indoor/Outdoor
Protection Class: IP20, IP54 Scope |
|||||||||
| LZZBJ9-10, LZZBJ9-35, JDZ-10 | Cast Resin Instrument Transformer, Oil-Immersed CT/PT, Indoor Transformer | Silicon Steel, Epoxy Resin, Copper Winding, Aluminum Alloy | Power Grid, Substation, Power Distribution, Solar Energy, Industrial Equipment | ||||||
|
Images
Type Cast Resin Instrument Transformer, Oil-Immersed CT/PT, Indoor Transformer Applicable Industry Power Grid, Substation, Power Distribution, Solar Energy, Industrial Equipment Params Rated Voltage: 10kV/35kV
Accuracy Class: 0.2/0.5/1
Rated Current: 5A-3000A
Insulation: Cast Resin/Oil Immersed Scope |
|||||||||
| LZZBJ9-10, LZZBJ9-35, LMZ1-0.5, LMZJ1-0.5 | Indoor Current Transformer, Outdoor Current Transformer, Cast Resin CT, Oil-Immersed CT, Busbar Type CT | Cold-Rolled Silicon Steel Sheet, Epoxy Resin, Copper Winding, Aluminum Alloy Housing, Stainless Steel Clamp | Power Grid, Power Substation, Power Distribution, Renewable Energy (Solar/Wind), Industrial Power System, Railway Electrification, Smart Grid | ||||||
|
Images
Type Indoor Current Transformer, Outdoor Current Transformer, Cast Resin CT, Oil-Immersed CT, Busbar Type CT Applicable Industry Power Grid, Power Substation, Power Distribution, Renewable Energy (Solar/Wind), Industrial Power System, Railway Electrification, Smart Grid Params Rated Primary Current: 5A-5000A
Rated Secondary Current: 1A / 5A
Accuracy Class: 0.2S, 0.2, 0.5S, 0.5, 1, 5P, 10P
Rated Voltage: 0.5kV, 10kV, 35kV, 110kV
Frequency: 50Hz / 60Hz
Insulation Level: 12/42/75kV
Installation Type: Indoor / Outdoor
Protection Class: IP20, IP54 Scope |
|||||||||
| indoor type | Indoor Potential Transformer, Outdoor Potential Transformer, Cast Resin Potential Transformer, Oil-Immersed Potential Transformer | Cold-Rolled Silicon Steel Sheet, Epoxy Resin, Copper Winding, Aluminum Alloy Housing | electricity industrial control | ||||||
|
Images
Type Indoor Potential Transformer, Outdoor Potential Transformer, Cast Resin Potential Transformer, Oil-Immersed Potential Transformer Applicable Industry electricity
industrial control Params Rated Voltage: 10kV, 35kV, 110kV
Rated Capacity: 10VA, 15VA, 30VA, 50VA, 100VA
Accuracy Class: 0.2, 0.5, 1, 3
Insulation Level: 12/42/75kV
Frequency: 50Hz/60Hz
Installation Type: Indoor/Outdoor
Protection Class: IP00, IP20, IP54 Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
| Certification | Cert Number | Standard | Authority | Market | Issue Date | Expiry Date | Document |
|---|---|---|---|---|---|---|---|
| CE | B-S00051E0199R1 | EN61869-1:2009 EN61869-2:2012 | BEIDE | EU,ASIA,MIDDLE EAST | 2025-09-17 | 2028-09-16 | |
| ISO9001 | 91320281MABPUAFD29 | ISO 9001:2015 (equivalent to GB/T 19001-2016) | Noah Testing & Certification Group Co., Ltd. | EU、NA、SEA、ME、JP、KR | 2025-10-13 | 2028-10-26 |
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| electricity、industrial control、energy management、energy monitoring、EV Charging、medical X-ray、speical power supply、devices、power supply | PL,IT,CZ,ES,JP,KR,AE,US,CA,MX,EC,CO,BR,AR,TH,ID,VN,MY,SG,RU,UA,HU,LV,DK,SE,FI | Transformer | Transformer Core | Magnetic induction, reduction of loss, support of coil, reduction of excitation current | 30 working days | Customized Design, Low Loss & High Efficiency, High Insulation Strength, RoHS & CE Compliance, Long Service Life, Anti-Corrosion | Transformer |
| electricity、industrial control、energy management、energy monitoring、electricity、EV Charging、medical X-ray、speical power supply、devices、power supply | US,CA,MX,BY,ES,DE,FR,PT,UA,PL,BE,SE,CH,GR,CZ,BR,CL,CO,PE,AR,AU,EG,TR,SA,IL,IR,IQ,KR,PH,MY,ID,TH,VN,S | Indoor/Outdoor Installation, 50Hz/60Hz Power System, -40°C to +155°C Operating Temperature, High Voltage/Low Voltage, Dry Type/Oil Immersed | Transformer Core | Magnetic induction, reduction of loss, support of coil, reduction of excitation current | 30 working days | Customized Design, Low Loss & High Efficiency, High Insulation Strength, RoHS & CE Compliance, Long Service Life, Anti-Corrosion | Power Transformer, Current/Voltage Transformer, Inductor, Reactor, Filter, Switchgear, Distribution Cabinet, Power Inverter |
Industries (2) → Products (15 models) → Certifications (2)
Manufacturing Capabilities
Core processes and equipment available in-house.
Customization
size/specification/size/material
Monthly Capacity
10000units
Lead Time
45-60days
Export Markets
North America/Europe/Central and South America/the Middle East/Asia
After Sales
remote suppor
Quality Control
100%test
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| Power equipment manufacturer, sensor OEM, instrument transformer producer | AE,AR,AT,AU,AZ,BD,BE,BG,BN,BR,BY,CA,CH,CL,CO,CR,CZ,DE,DK,DO,EE,EG,ES,FI,FR,GB,GE,GR,HR,HU,ID,IE,IL,I | 5000units | Current/voltage transformers, industrial sensors, power metering equipment, smart grid terminals | Stable service for over 10 years, long-term cooperation | High-precision metering, low-loss operation, strong anti-interference, IEC international standard compliant | Ultra-low core loss, high magnetic permeability, customized size, high-precision machining, 100% inspection before delivery |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Conventional ordinary silicon steel core | Lower core loss, higher magnetic permeability, customized structural design, superior process precision | Core loss reduced by over 30%, magnetic permeability increased by 2 times, lamination precision ±0.02mm | High-Efficiency Power Transformers, Precision Instrument Transformers, New Energy Inverters, EV Charging Stations, High-Frequency Inductors, Low-Loss Reactor Systems | Total life cycle cost reduced by 15%, long-term operation and maintenance cost saved by 20% | Higher energy efficiency, lower no-load loss, higher conversion efficiency, compliant with global energy efficiency standards |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
Purchase & Trade Information
Trading terms and procurement details.
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Conventional ordinary silicon steel core | Lower core loss, higher magnetic permeability, customized structural design, superior process precision | Core loss reduced by over 30%, magnetic permeability increased by 2 times, lamination precision ±0.02mm | High-Efficiency Power Transformers, Precision Instrument Transformers, New Energy Inverters, EV Charging Stations, High-Frequency Inductors, Low-Loss Reactor Systems | Total life cycle cost reduced by 15%, long-term operation and maintenance cost saved by 20% | Higher energy efficiency, lower no-load loss, higher conversion efficiency, compliant with global energy efficiency standards |
